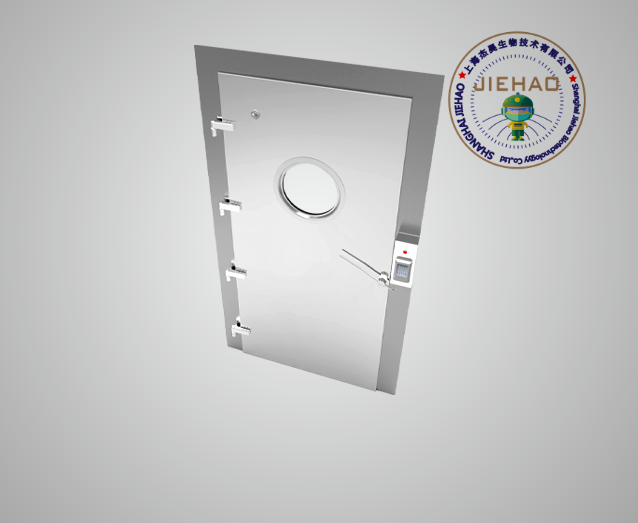

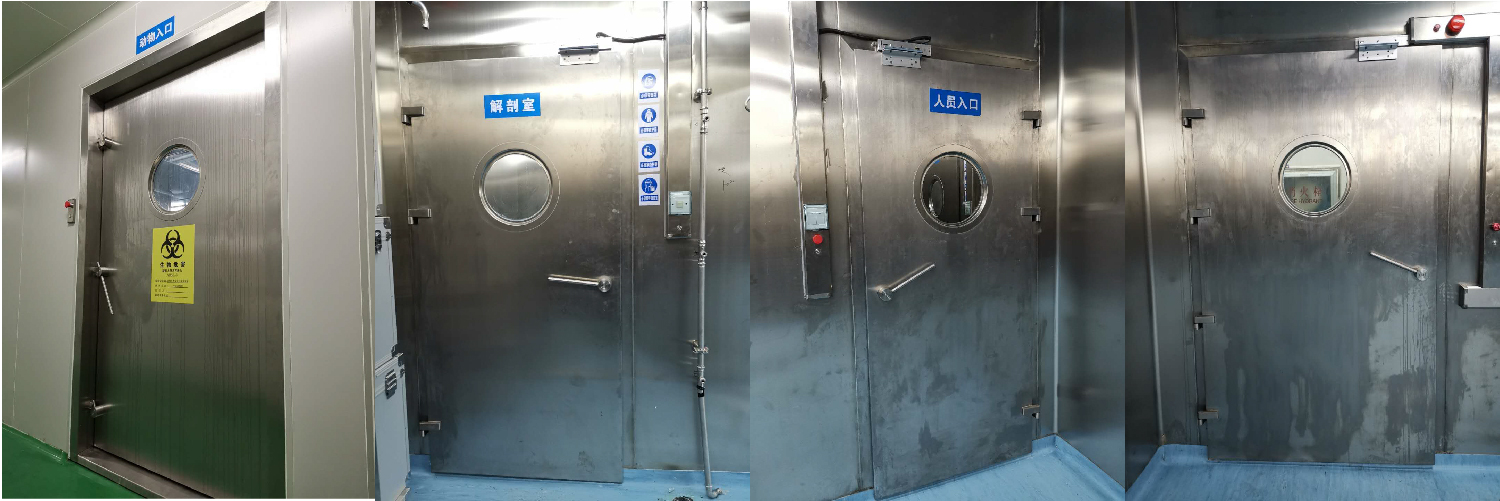

机械压紧式气密门主要由门框、门体、密封条、机械压紧机构和控制装置组成，其中密封条安装于门框上，其工作原理为：门关闭时，通过压紧机构使门与门框之间的密封条与门框上的刀口紧紧压紧，使门与门框之间形成严格密封。The mechanical compression airtight door is mainly composed of door frame, door body, sealing strip, mechanical compression mechanism and control device. The sealing strip is installed on the door frame. Its working principle is: when the door is closed, the sealing strip between the door and the door frame and the knife edge on the door frame are tightly compressed through the compression mechanism to form a strict seal between the door and the door frame.
特点characteristic:
Fully sealed structure design
Special single handle locking system
Low maintenance
Configurable buttons and LED indicators
Visual windows can be installed
可选项Options
Interlocking system optional
The door frame can match all wall panel forms.
No visual mounting accessories on the wall
Electric door closer
Cover the visual window
304 or 316 stainless steel.
The maximum dimension can be designed to 4m*2.5m wide
