杰昊强制淋浴系统
SPINCLE强制淋浴系统为模块化设计，可配有强水喷淋系统，也可同时配有空气净化系统。
SPINCLE强制淋浴系统已经经过独立测试和验证，通过强制方式对操作者进行淋浴，未经淋浴的情况下不可走出污染区。底部设置下水管道，并设置储水霜，通过恒温设备，保证供水温度。可配有空气净化单元进行空气吹淋。强制淋浴是独立的单元，配有自己的系统，可多台合并使用，也可以接入中控系统，水量及强制淋浴时间均可调，配有急停开关，并可根据客户要求设置控制面板。
为了满足生物实验室的要求并实现更高的防护标准，我们设计了一种强制性水淋浴系统，用于个人从细菌环境过渡到无菌环境。该系统集成了我们在生物实验室通道多年的经验，以及具有互锁功能的膨胀密封门和当前的水淋浴模式，为用户提供了更大的便利性和灵活性。
在制药生产环境中，水淋浴系统变得越来越重要，被认为是确保所有人员安全和用户安全的关键。
技术规格：
- 采用SS304/316不锈钢材质
- 带互锁功能的不锈钢门
- 高端西门子PLC自动控制系统
- 独立的淋浴系统，可调节喷水量和时间
- 恒温供水系统
- 可选的空气净化系统
- 紧急停止按钮
- 电源供应：交流220伏特，50赫兹
组件：
- 去污室
- 强制去污淋浴自动化系统
- 用于消毒和去污的水淋浴系统
关键特点：
- 目的：促进从受污染环境到无菌环境的过渡，确保人员安全和无菌环境的完整性。
- 设计：结合了实验室通道多年的经验，集成了具有互锁功能的不锈钢门，以实现安全的过渡。
- 灵活性：根据特定需求，提供调节喷水量和持续时间的便利。
- 重要性：在制药生产环境中至关重要，以确保人员和产品的安全。
详细技术规格：
- 柜体：采用SS304/316材质，确保耐用性和耐蚀性。适用于BSL3或BSL4高等级实验室。
- 门：配备SS304/316不锈钢门，提供密封效果，并具有互锁功能以防止交叉污染。
- 控制系统：使用高端西门子PLC自动控制，确保可靠运行。
- 淋浴系统：具有独立的淋浴系统，可以根据需要调节喷水量和时间。
- 水供应：可选恒温供水系统，以保持一致的环境。
- 空气净化：可以添加可选的空气净化系统，以增强空气质量管理。
- 安全特性：包括紧急停止按钮，以便在操作过程中立即响应任何问题。
- 电源供应：操作电压为交流220伏特，50赫兹，适用于许多工业应用。
该系统是在高污染风险环境中维护高标准安全和卫生的关键组成部分，例如在高级生物研究和制药制造中。

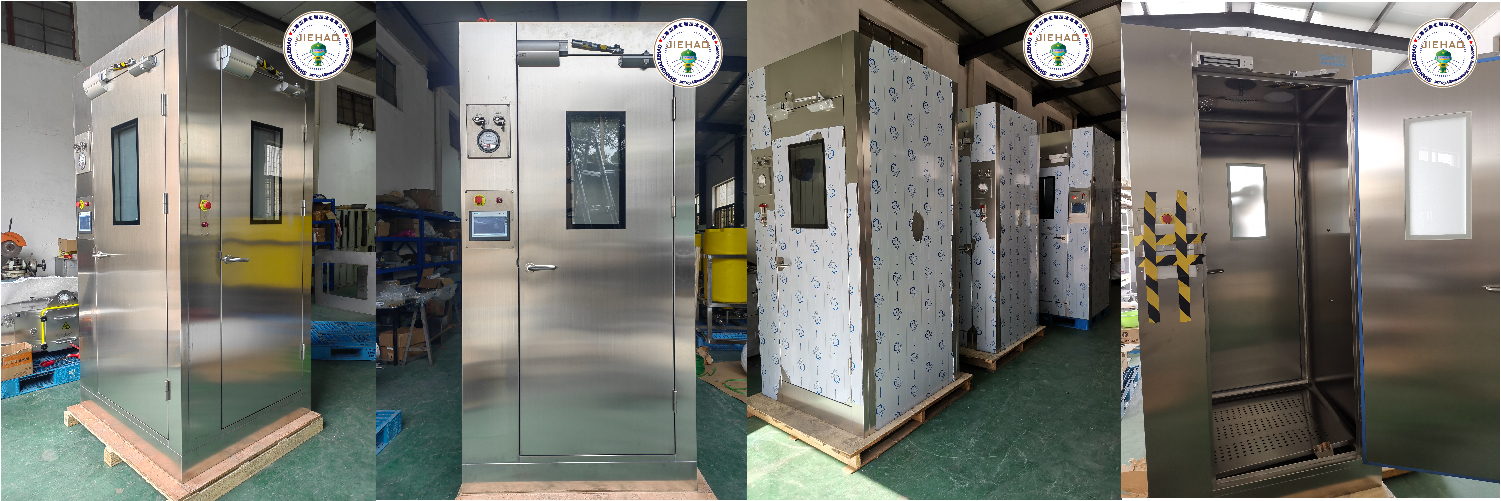

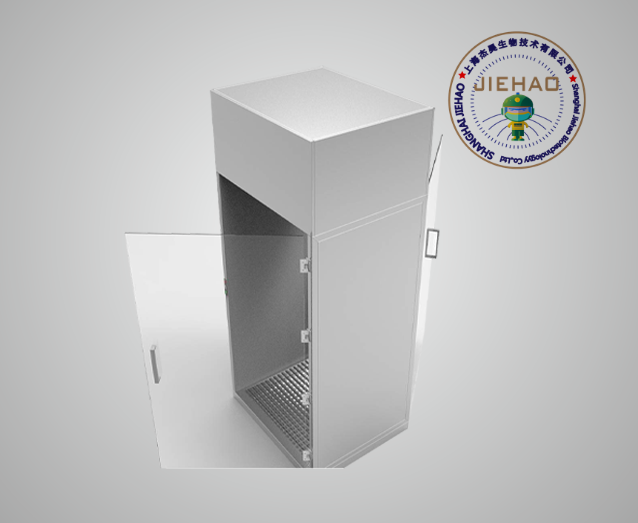

Jiehao Forced Shower System
The SPINCLE Forced Shower System is designed modularly, capable of being equipped with a powerful water spray system and, if necessary, an air purification system as well.
The SPINCLE Forced Shower System has undergone independent testing and verification. It enforces a shower on the operator, preventing exit from the contaminated area without undergoing the shower process. It features a drainage system at the bottom and a water storage tank, with a constant temperature device to ensure the water supply temperature. An air purification unit can be added for air showering. The forced shower is an independent unit with its own system, capable of being used in multiple units or integrated into a central control system. The water volume and forced shower duration are adjustable, equipped with an emergency stop switch, and a control panel can be set up according to customer requirements.
To meet the requirements of biological laboratories and to achieve higher protection standards, we have designed a mandatory water shower system for individuals transitioning from a bacterial environment to a sterile one. This system integrates our years of experience in the passageways of biological laboratories, as well as inflated seal doors with interlocking functions and current water shower modes, providing users with greater convenience and flexibility.
In pharmaceutical production environments, water shower systems are becoming increasingly important and are considered key to ensuring the safety of all personnel and the security of the user.
Technical Specifications:
- Constructed with SS304/316 stainless steel
- Stainless steel doors with interlocking functions
- High-end Siemens PLC automatic control system
- Independent shower system with adjustable spray volume and duration
- Constant temperature water supply system
- Optional air purification system
- Emergency stop button
- Power supply: AC220V 50HZ
Components:
- Decontamination Chamber
- Automated Forced Decontamination Shower System
- Water shower system for disinfection and decontamination
Key Features:
- Purpose: To facilitate the transition from a contaminated environment to a sterile one, ensuring the safety of personnel and the integrity of the sterile environment.
- Design: Combines years of experience in laboratory passageways, integrating stainless steel doors with interlocking functions for secure transitions.
- Flexibility: Provides the convenience of adjusting the spray volume and duration according to specific needs.
- Importance: Crucial in pharmaceutical production environments to ensure the safety of personnel and products.
Detailed Technical Specifications:
- Cabinets: Made of SS304/316 material, ensuring durability and corrosion resistance. Suitable for high-level laboratories such as BSL3 or BSL4.
- Doors: Equipped with SS304/316 stainless steel doors, providing a sealed effect and interlocking functions to prevent cross-contamination.
- Control System: Uses a high-end Siemens PLC for automatic control, ensuring reliable operation.
- Shower System: Features an independent shower system with adjustable spray volume and duration as needed.
- Water Supply: Optional constant temperature water supply system to maintain a consistent environment.
- Air Purification: An optional air purification system can be added to enhance air quality management.
- Safety Features: Includes an emergency stop button for immediate response to any issues during operation.
- Power Supply: Operates on AC220V 50HZ, suitable for many industrial applications.
This system is a critical component in maintaining high standards of safety and hygiene in environments with a high risk of contamination, such as in advanced biological research and pharmaceutical manufacturing.
