杰昊生物安全VHP管道式传递窗
VHP管式式传递窗，也可叫生物安全传递窗，根据消毒方的不同，可分为生物安全紫外灯传递窗，生物安全层流传递窗，生物安全喷淋式传递窗等等。
VHP传递窗主要用于在不同级别的隔离房间之间安全传递物品。在这些环境中，物品在转移前需要进行空气颗粒清洁或表面生物消毒。如果需要VHP过氧化氢消毒，需要外接过氧化氢消毒机，该传递窗内部不含有过氧化氢发生器（如果需要内置过氧化氢发生器的传递窗，可关注本公司另一款产品：VHP传递窗）。
技术规格：
- 独立的VHP消毒机可以与我们的VHP管道式传递窗连接。
- 适用于BSL3、BSL4、ABSL3、ABSL4高等级生物安全实验室。
- 配备有互锁生物安全气密门，确保腔内密封安全。
- 含压缩空气路径控制装置，以实现精确操作。
- 由PLC自动控制系统操作，确保可靠自动化。
- 门可以通过按钮控制打开和关闭，便于使用。
- 双层视窗玻璃，提供清晰的视线。
- 可选的紧急释放阀，用于安全。
- 可选的紧急停止按钮，以便立即响应任何问题。
- 可选充气气密门或机械压紧气密门。
- 箱体可承受2500Pa的压力 1小时无形变。腔体在正/负500Pa的压力下，20分钟内压力变化不大于200Pa.

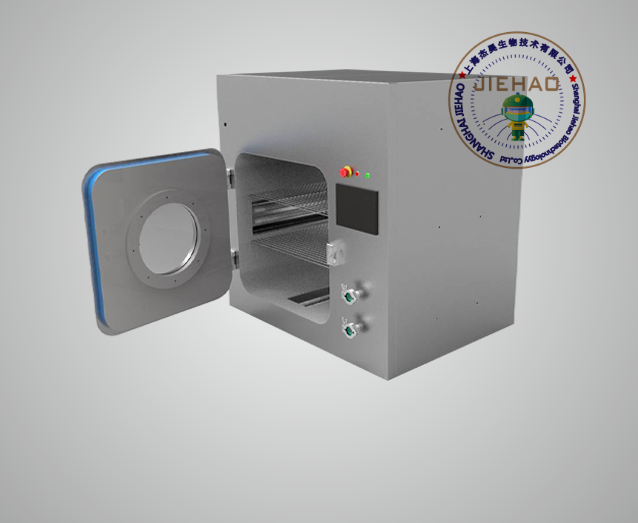

Jiehao Bio-Safety VHP Pipeline Transfer Chamber

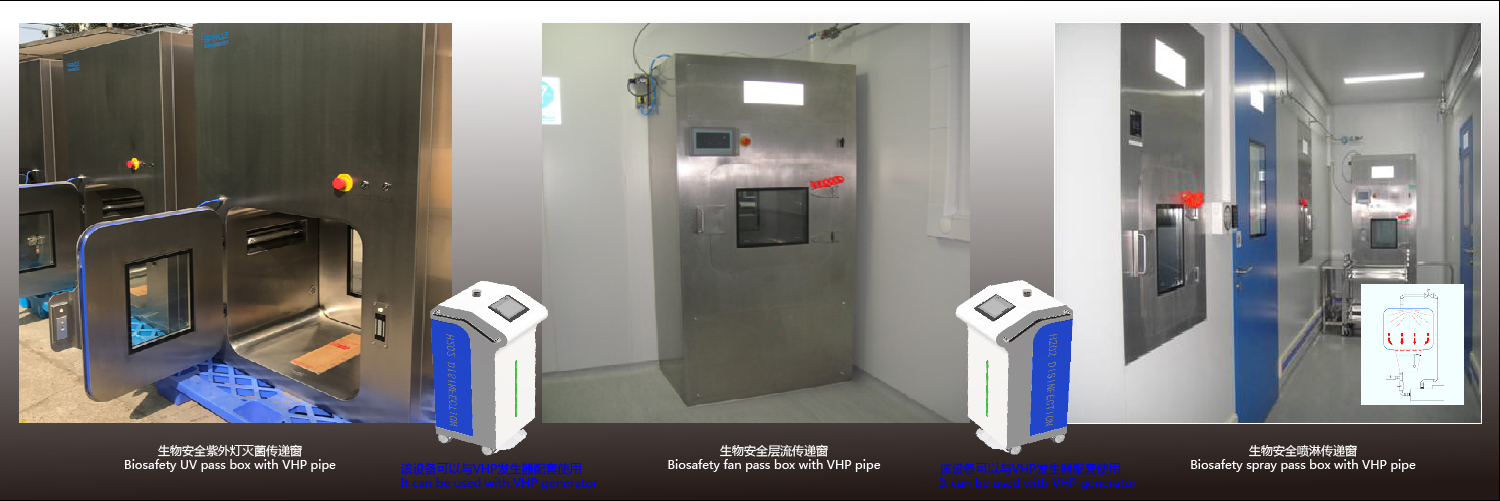

The VHP pipeline transfer pass box, also known as the bio-safety pass box, can be classified into various types based on the disinfection method, such as bio-safety ultraviolet lamp transfer window, bio-safety laminar flow transfer window, bio-safety spray disinfection transfer window, and so on.
The VHP transfer window is mainly used for the safe transfer of items between different levels of isolation rooms. In these environments, items need to undergo air particle cleaning or surface biological disinfection before transfer. If VHP hydrogen peroxide disinfection is required, an external hydrogen peroxide disinfection machine is needed, and the transfer window does not contain a hydrogen peroxide generator inside (for a transfer window with a built-in hydrogen peroxide generator, please refer to another product of our company: VHP transfer window).
Technical Specifications:
- An independent VHP disinfection machine can be connected to our VHP pipeline transfer window.
- Suitable for high-level bio-safety laboratories such as BSL3, BSL4, ABSL3, ABSL4.
- Equipped with interlocking bio-safety air-tight doors to ensure the safety of the cavity seal.
- Includes a compressed air path control device for precise operation.
- Operated by a PLC automatic control system to ensure reliable automation.
- Doors can be opened and closed by button control for easy use.
- Double-layer viewing glass provides a clear line of sight.
- Optional emergency release valve for safety.
- Optional emergency stop button for immediate response to any issues.
- Optional inflatable air-tight door or mechanical press-tight air-tight door.
- The box can withstand a pressure of 2500Pa for 1 hour without deformation. The cavity, under a positive/negative pressure of 500Pa, has a pressure change of no more than 200Pa within 20 minutes.
This transfer chamber is designed and equipped to ensure the safety and reliability of item transfer in high-risk bio-safety environments, suitable for laboratories and facilities that require strict bio-safety control.
TAG: 生物安全传递窗， 生物安全气密传递窗， P3实验室传递窗， P4实验室传递窗；高等级实验室传递窗；VHP管道式传递窗；充气门传递窗；生物安全管道式传递窗；生物安全消毒传递窗；VHP传递窗；Biosafety pass box; biosafety pass through box; biosafety inflatable pass box; P3 pass box; p4 pass box; high level laboratory; VHP pipe pass box; inflatable pass box; sterilze pass box; disinfect pass box; VHP pass box; vhp chamber; vhp transfer chamber;
需要更详细的产品资料，请来电索取相关样册！
If you require more detailed product information, please call to request the relevant brochures!
