上海杰昊生物技术有限公司自行研发设计生产的生物安全喷淋传递窗用在哪里？
世界在发展，人口在增长，畜牧业在满足民生食品需求中起着关键性作用，兽用生物制品产业为保障畜牧产品的质量完全，人畜共患病的防控及公共卫生安全，发挥着到至关重要的作用，生物安全喷淋传递窗是一种专门设计用于高级别生物安全实验室的设备，是生物安全实验室围护结构的重要组成部份，解决了P3,P4实验室气密性的关键性的作用。生物安全传递窗具有多项技术优势和功能，主要用于以下方面：
使用场景
生物安全喷淋传递窗主要用于以下场景：
1. 生物安全实验室：特别是在三级生物安全实验室（ABSL-3）中，用于在不同的生物安全区域之间传递物品，如从准备区到实验区或从实验区到外部环境。
2. 动物饲养区：在ABSL-3实验室中，动物饲养区需要特别的生物安全措施，喷淋传递窗可以用于动物饲料、垫料、饮水等物品的传递。
3. 洁净室：在需要保持高度洁净环境的场所，如制药厂、医院的无菌操作室、食品加工业等，喷淋传递窗可以减少洁净室开门次数，降低污染风险。
4. 实验材料和废物的处理：用于安全地将实验材料和废物从一个区域转移到另一个区域，尤其是当这些材料可能含有有害病原体时。
5. 设备和仪器的传递：实验室内的敏感设备和仪器可能需要在不同的安全级别区域之间转移，喷淋传递窗可以确保这些设备在转移过程中的生物安全。
6. 医疗设施：在医院或医疗研究设施中，喷淋传递窗可以用于隔离区域与非隔离区域之间的物品传递，以防止病原体的传播。
7. 研究和开发：在涉及高风险病原体的研究和开发活动中，喷淋传递窗提供了一个安全的传递机制，保护研究人员和环境。
8. 废物处理和消毒：在废物处理区域，喷淋传递窗可用于将废物从实验室内部转移到外部的消毒或处理设施。喷淋传递窗的使用确保了生物安全实验室中物品传递的安全性，减少了病原体泄露的风险，并保护了研究人员的健康。
技术优势
1. 双重门安全机制：配备电子或机械连锁装置，防止两侧门同时开启，避免交叉污染。
2. 密封性能：使用生物安全气密门，确保运行过程中的密封性，防止污染物泄露。
3. 规范管理：遵循《传递窗》JG/T382-2012标准，确保设计、安装和使用符合生物安全要求。
4. 喷淋消毒功能：定制喷淋头全方位消毒，适应不同物品的消毒需求。
5. 废液处理：配备专用排液管道或收集桶，有效处理消毒后的残液，防止环境污染。
6. 密封性能测试：能在腔内打压500Pa下，20分钟内气压自然衰减小于250Pa。
7. 程序设计：采用西门子PLC控制，根据预设程序自动运行。
8. 客户定制：根据客户需求进行设备外观及程序设计，满足特定使用要求。
9. 专利技术：上海杰昊拥有专利技术（专利号：ZL20162114373666）一种生物安全喷淋气密传递窗。
10.稳定性：选用WILO水泵，确保设备运行稳定性。
11.无接触设置：选用杰昊定制开关，实现无接触开门。
客户评价

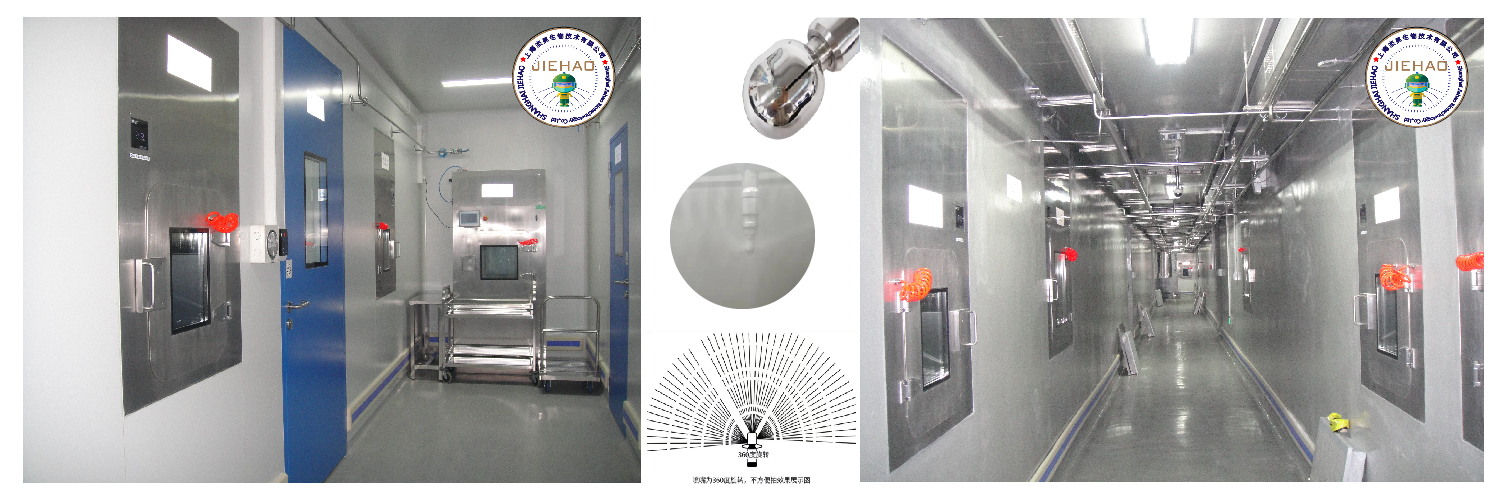

2015年在西安杨凌金海项目上首次使用杰昊生物安全气密喷淋传递窗，并通过第三方气密性检测，获得客户的高度好评。为国内生物安全实验室国产化奠定了不可磨灭了基础。
操作规程
- 物料和人员通过专用通道进出洁净区，减少污染风险。
- 传递物品时，执行“一开一闭”原则，确保两门不会同时开启。
- 使用后的传递窗进行及时清洁和消毒，维持卫生状态。
- 感染性材料通过传递窗时，必须放置在密闭容器中，防止病原体泄露或传播。
杰昊生物安全设备均为自主开发设计，严格遵循生物安全三级实验室的要求，维护实验室内的生物安全环境，保护研究人员和外部环境不受病原体的影响
Where is the biosafety spray steriliation pass box used?
As the world progresses and the population increases, the livestock industry plays a pivotal role in meeting the demand for food for people's livelihoods. The veterinary biological products industry is crucial for ensuring the quality of livestock products, preventing and controlling zoonotic diseases, and safeguarding public health. The biosafety spray transfer window is specially designed for high-level biosafety laboratories and is an essential part of the laboratory's protective structure, addressing the critical issue of air tightness in P3 and P4 laboratories.
The biosafety transfer window has multiple technical advantages and functions, mainly used in the following areas:
Application areas:
- Biosafety Laboratories:
- Animal husandry ares
- Cleanrooms
- Handling of experimental materials and waste
- Transfer of equipment and instruments
- Medical facilityies
- Research and development
- Waste disposal and disinfection
Technical Addvantages:
- Dual door safety mechanism: Equipped with electronic or mechanical interlocking devices to prevent both doors from opening at the same time, avoiding cross-contamination.
- Sealing performance: uses biosafety airtight doors to ensure sealing during operation and prevent the leakage of contaminants
-Standardizaed management: Adheres to the "pass box" JG/T382-2012 standard, ensureing theat design, installation, and use meet iosafety requirements.
- Spray disinfection function: Customized spray nozzles for comprehensive disinfection, adapting toe the disinfection needs of different items.
- Waste liquid treatment:Equipped with a dedicated drainage pipe or collection bucket to effectively handle the residual liquid after disinfection, preventing environmental pollution.
- Sealing performance test: Capable of withstanding a pressure of 500 Pa inside the cavity, with the natural pressure decay being less than 250Pa within 20 minutes.
- Program design: Uses Siemens: PLC control to qutomatically operate according to preset programs.
- Customization for customers" Customizes the appearance and program design of the equipment according to customer needs to meet specific requirements.
- Patented Technology: Shanghai Jiehao owns patented technology(patent No.:ZL2016214373666)
- Staility: Selects WILO pumps to ensure the stability of equipment operation.
- Contactless Setting: Choose Jiehao's custom switches to achieve contacless door opening.
Customer Evaluation:
In 2015, the Jiehao bisafety airtight spray pass box was first used in the Yang Ling Jin Hai project in Xi'an and passed the third-party airtightness test, receiving high praise from customers, It laid an indelible foundation for the lacalization of domestic biosafety laboratories.
Oerational Procedures:
- Materials and personnel enter and exit the clean area trough dedicated channels to reduce the risk of contamination.
- When transferring items, follow the "one open, one closed" principle to ensure that the two doors do not open at the same time.
- The pass box is promptly cleaned and disinfected after use to maintain hygiene.
- Infectious materials must be placed in a sealed contaier when passing throught the pass box to prevent the leakage or spread of pathogens.
Jiehao's biosafetty equipment is independently developed and designed, strictly followingg the requirements of biosafety level 3 laoratories, to maintain the biosafety environment inside the laboratory and protect researchers and the external environment from the impact of pathogens.
TAG:生物安全传递窗，生物安全喷淋传递窗，生物安全药液传递窗，药液消毒传递窗，药液消毒，偶蹄动物，大动物房建设
TAG: Biosafety pass through box, biosafety spray pass box, biosafety liquid pass box, liquid disinfection pass box, liquid disinfection, cloven-hoofed animals, large animal house construction
